- Tradeshow fabric displays for exihibits and backdrops
- Options for 8′, 10′, 20′ tradeshow stalls
- Straight/flat display has stabilizing feet
- Single or double sided tension fabric dye-sub print
- Tool free tube hardware·- fast assembly
- Carry bag included – Hard case / Podium options available

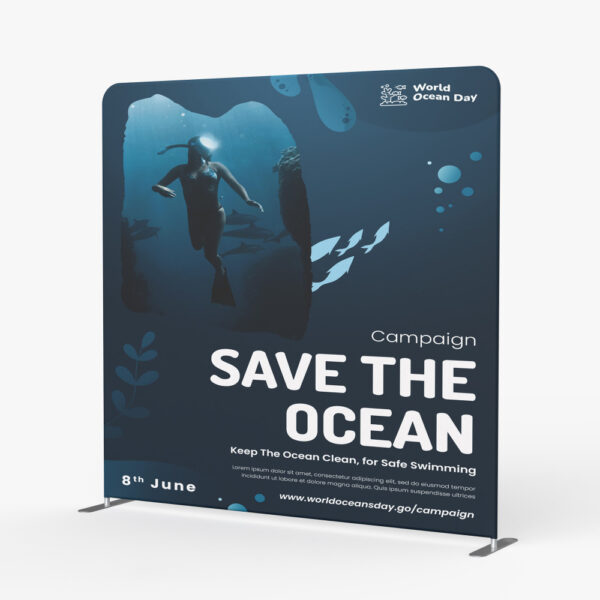

Straight Tension Fabric Displays
Price range: $222.74 through $1,979.18
Next Day Turnaround and Cut-off Time:
Order and submit artwork before 4pm PST ships next business day. Order after 4pm add 1 business day.
Orders over 100 qty require 2 extra business days.
Same Day Turnaround:
Not available for this product.
Description
Our tension displays consist of a lightweight but durable aluminum hardware and a fabric dye sublimated print. The hardware is inserted inside the print, much like a pillow into a pillowcase. The fabric print is stretched tight across the frame and zipped close.
Spec
Material:
- 8.8 oz. Tension Fabric
Hardware:
- Aluminum – Interlocking tube
- Soft canvas bag (complimentary)
- Hard Case – Durable Plastic (optional)
Size and Weight :
| Size and Weight | 8ft Straight Shape | 10ft Straight Shape | 20ft Straight Shape |
|---|---|---|---|
Display Size | 89.5”W x 89”H | 112”W x 89”H | 236.5”W x 89.5”H |
Graphic Size | 90”W x 89.5”H | 115”W x 89.5”H | 236”W x 89.5”H |
Weight (w/ soft canvas bag) | 30 lbs | 34 lbs | 41 lbs |
Weight (w/ podium & led lights) | 52 lbs | 53 lbs | 72 lbs |
Package Size (soft canvas bag) | 32”W x 11”H x 11”D | 32”W x 11”H x 11”D | 32”L x 12”W x 16”H |
Package Size (hard case) | 40”W x 21”H x 17”D | 40″W x 21″H x 17″D | 40″W x 21″H x 17″D |
Podium Size | 37″W x 37″H x 20″D | 37″W x 37″H x 20″D | 37″W x 37″H x 20″D |
File Setup
- Accepted File Formats: JPEG or PDF (single page only)
- Color Space: CMYK
- Resolution: For 8′ and 10′ displays 150 ppi recommended for raster images, for 20′ display 120 ppi.
- Max File Upload Size: 300MB
- Submit artwork built to ordered size – Scaled artwork is automatically detected and fit to order
- Do not include crop marks or bleeds
- Double sided products will be uploaded as two spearate files unless otherwise specified in the artwork template
Additional Tips
- Do not submit with Pantones/Spot Colors – Convert to CMYK
- Convert live fonts to outlines
- Use provided design templates when available
Template Download (Template User Guide)
| Straight Tension Fabric Display | Photoshop | |
|---|---|---|
8′ Straight Shape | Download | Download |
10′ Straight Shape | Download | Download |
20′ Straight Shape | Download | Download |
Podium | Download | Download |
- Do not adjust artboard size
- Do not reposition guidelines
- Design on layer labelled “Artwork”
- Delete mask/guide layers when instructed by template
Installation Guide
Step 1: Connect tubes of the frame (There are number labels on the tubes)
Step 2: Wrap up the frame with the graphic from left to right, then zip up
Step 3: Put the light clip on the top of the display and fix it with screw, then connect the light and the clip
